deluge::hid::display::SevenSegment Class Reference

Inheritance diagram for deluge::hid::display::SevenSegment:

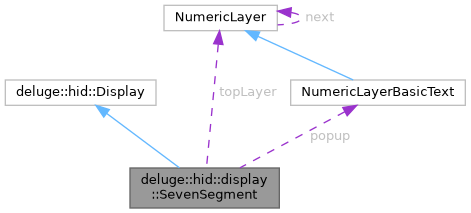

Collaboration diagram for deluge::hid::display::SevenSegment:

Public Member Functions
void	setText (std::string_view newText, bool alignRight=false, uint8_t drawDot=255, bool doBlink=false, uint8_t *newBlinkMask=nullptr, bool blinkImmediately=false, bool shouldBlinkFast=false, int32_t scrollPos=0, uint8_t *blinkAddition=nullptr, bool justReplaceBottomLayer=false) override
void	setNextTransitionDirection (int8_t thisDirection) override
void	displayPopup (std::string_view newText, int8_t numFlashes=3, bool alignRight=false, uint8_t drawDot=255, int32_t blinkSpeed=1, PopupType type=PopupType::GENERAL) override
void	freezeWithError (std::string_view) override
void	cancelPopup () override
void	displayError (Error error) override
void	setTextAsNumber (int16_t number, uint8_t drawDot=255, bool doBlink=false) override
void	setTextAsSlot (int16_t currentSlot, int8_t currentSubSlot, bool currentSlotExists, bool doBlink=false, int32_t blinkPos=-1, bool blinkImmediately=false) override
void	timerRoutine () override
void	removeTopLayer ()
NumericLayerScrollingText *	setScrollingText (std::string_view text, int32_t startAtPos=0, int32_t initialDelay=600, int count=-1, uint8_t fixedDot=255) override
int32_t	getEncodedPosFromLeft (int32_t text_position, std::string_view text, bool *andAHalf) override
void	render ()
void	displayLoadingAnimation (bool delayed=false, bool transparent=false)
bool	isLayerCurrentlyOnTop (NumericLayer *layer) override
std::array< uint8_t, kNumericDisplayLength >	getLast () override
bool	hasPopup () override
bool	hasPopupOfType (PopupType type) override
constexpr size_t	getNumBrowserAndMenuLines () override
void	consoleText (std::string_view text) override
void	popupText (std::string_view text, PopupType type=PopupType::GENERAL) override
void	popupTextTemporary (std::string_view text, PopupType type=PopupType::GENERAL) override
void	removeWorkingAnimation () override
void	displayLoadingAnimationText (std::string_view text, bool delayed=false, bool transparent=false) override
void	removeLoadingAnimation () override
void	enableLowercase ()
void	disableLowercase ()
Public Member Functions inherited from deluge::hid::Display
	Display (DisplayType displayType)
virtual void	displayPopup (uint8_t val, int8_t numFlashes=3, bool alignRight=false, uint8_t drawDot=255, int32_t blinkSpeed=1, PopupType type=PopupType::GENERAL)
virtual void	displayLoadingAnimation ()
virtual void	displayHorizontalMenuPopup (std::string_view paramTitle, std::optional< std::string_view > paramValue)
bool	haveOLED ()
bool	have7SEG ()

Private Member Functions
void	deleteAllLayers ()
int32_t	encodeText (std::string_view newText, uint8_t *destination, bool alignRight, uint8_t drawDot=255, bool limitToDisplayLength=true, int32_t scrollPos=0)
void	replaceBottomLayer (NumericLayer *newLayer)
void	setTopLayer (NumericLayer *newTopLayer)
void	transitionToNewLayer (NumericLayer *newLayer)
void	setTextVeryBasicA1 (std::string_view text)

Private Attributes
NumericLayerBasicText	popup
NumericLayer *	topLayer = nullptr
int8_t	nextTransitionDirection = 0
bool	popupActive = false
PopupType	popupType = PopupType::NONE
std::array< uint8_t, kNumericDisplayLength >	lastDisplay_ = {0}
bool	use_lowercase = false

Member Function Documentation

cancelPopup()

void deluge::hid::display::SevenSegment::cancelPopup ( )

overridevirtual

Implements deluge::hid::Display.

consoleText()

void deluge::hid::display::SevenSegment::consoleText ( std::string_view text )

inlineoverridevirtual

Implements deluge::hid::Display.

displayError()

void deluge::hid::display::SevenSegment::displayError ( Error error )

overridevirtual

Implements deluge::hid::Display.

displayLoadingAnimationText()

void deluge::hid::display::SevenSegment::displayLoadingAnimationText ( std::string_view text, bool delayed = false, bool transparent = false )

inlineoverridevirtual

Implements deluge::hid::Display.

displayPopup()

void deluge::hid::display::SevenSegment::displayPopup ( std::string_view newText, int8_t numFlashes = 3, bool alignRight = false, uint8_t drawDot = 255, int32_t blinkSpeed = 1, PopupType type = PopupType::GENERAL )

overridevirtual

Implements deluge::hid::Display.

freezeWithError()

void deluge::hid::display::SevenSegment::freezeWithError ( std::string_view text )

overridevirtual

Implements deluge::hid::Display.

getEncodedPosFromLeft()

int32_t deluge::hid::display::SevenSegment::getEncodedPosFromLeft ( int32_t text_position, std::string_view text, bool * andAHalf )

overridevirtual

Reimplemented from deluge::hid::Display.

getLast()

std::array< uint8_t, kNumericDisplayLength > deluge::hid::display::SevenSegment::getLast ( )

inlineoverridevirtual

Reimplemented from deluge::hid::Display.

getNumBrowserAndMenuLines()

size_t deluge::hid::display::SevenSegment::getNumBrowserAndMenuLines ( )

inlineconstexproverridevirtual

Implements deluge::hid::Display.

hasPopup()

bool deluge::hid::display::SevenSegment::hasPopup ( )

inlineoverridevirtual

Implements deluge::hid::Display.

hasPopupOfType()

bool deluge::hid::display::SevenSegment::hasPopupOfType ( PopupType type )

inlineoverridevirtual

Implements deluge::hid::Display.

isLayerCurrentlyOnTop()

bool deluge::hid::display::SevenSegment::isLayerCurrentlyOnTop ( NumericLayer * layer )

overridevirtual

Implements deluge::hid::Display.

popupText()

void deluge::hid::display::SevenSegment::popupText ( std::string_view text, PopupType type = PopupType::GENERAL )

inlineoverridevirtual

Implements deluge::hid::Display.

popupTextTemporary()

void deluge::hid::display::SevenSegment::popupTextTemporary ( std::string_view text, PopupType type = PopupType::GENERAL )

inlineoverridevirtual

Implements deluge::hid::Display.

removeLoadingAnimation()

void deluge::hid::display::SevenSegment::removeLoadingAnimation ( )

inlineoverridevirtual

Implements deluge::hid::Display.

removeWorkingAnimation()

void deluge::hid::display::SevenSegment::removeWorkingAnimation ( )

inlineoverridevirtual

Implements deluge::hid::Display.

setNextTransitionDirection()

void deluge::hid::display::SevenSegment::setNextTransitionDirection ( int8_t thisDirection )

overridevirtual

Reimplemented from deluge::hid::Display.

setScrollingText()

NumericLayerScrollingText * deluge::hid::display::SevenSegment::setScrollingText ( std::string_view text, int32_t startAtPos = 0, int32_t initialDelay = 600, int count = -1, uint8_t fixedDot = 255 )

overridevirtual

Reimplemented from deluge::hid::Display.

setText()

void deluge::hid::display::SevenSegment::setText ( std::string_view newText, bool alignRight = false, uint8_t drawDot = 255, bool doBlink = false, uint8_t * newBlinkMask = nullptr, bool blinkImmediately = false, bool shouldBlinkFast = false, int32_t scrollPos = 0, uint8_t * blinkAddition = nullptr, bool justReplaceBottomLayer = false )

overridevirtual

Reimplemented from deluge::hid::Display.

setTextAsNumber()

void deluge::hid::display::SevenSegment::setTextAsNumber ( int16_t number, uint8_t drawDot = 255, bool doBlink = false )

overridevirtual

Reimplemented from deluge::hid::Display.

setTextAsSlot()

void deluge::hid::display::SevenSegment::setTextAsSlot ( int16_t currentSlot, int8_t currentSubSlot, bool currentSlotExists, bool doBlink = false, int32_t blinkPos = -1, bool blinkImmediately = false )

overridevirtual

Reimplemented from deluge::hid::Display.

timerRoutine()

void deluge::hid::display::SevenSegment::timerRoutine ( )

overridevirtual

Implements deluge::hid::Display.

---

The documentation for this class was generated from the following files:

• src/deluge/hid/display/seven_segment.h
• src/deluge/hid/display/seven_segment.cpp
